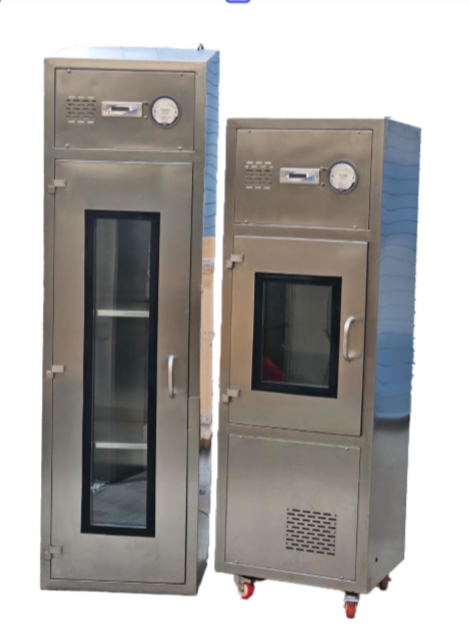

STATIC PASS BOX

A Static Pass Box is a key cleanroom device designed to safely transfer materials between two areas while preventing airborne cross-contamination and maintaining pressure balance. As its name suggests, its sole function is to pass materials from one side to the other without compromising cleanliness standards.
The built-in door interlocking mechanism ensures that only one door opens at a time—effectively preventing air exchange between two clean zones.

Static Pass Boxes are installed between cleanroom areas of the same grade and operate without any air supply or extraction. Also known as passive pass boxes, they commonly include UV light for added sterilization. They are widely referred to as:

  • Cleanroom Pass Through Box

  • Hatch Box

  • Transfer Hatch

  • Clean Transfer Window

These units are extensively used across microbiology labs, pharmaceuticals, food processing, life sciences, electronics, and chemical industries.

NextGen Engineering is a trusted manufacturer of high-quality Static Pass Boxes in India, serving domestic and international markets. Our pass boxes are built with robust construction, low-noise operation, and easy-to-use mechanisms, ensuring long service life. We offer both standard and fully customized units tailored to any required size, manufactured in accordance with global cleanroom standards—all at competitive prices.

Technical Specifications

Parameter Specification
Material SS 304 / SS 316 / SS 316L / In Combination
Material Thickness 1 mm / 1.2 mm / 1.6 mm
Construction Double Skin Body Construction
Surface Finish Matte Finish
Internal Coving Pencil Coving in Internal Working Area for Easy Cleaning
Display Two Line Digital Display with ON/OFF Buttons with LED Indication
Controller Electromagnetic Door Interlocking (Allows to open one door at a time)
LED Light Diffused Fluorescent Lighting to provide an intensity of 300 LUX
UV Light 8W-11W, Make : Philips or Equivalent
Hour Meter UV Burning Hour Meter (Inbuilt in Controller) or External
Alarm System Door Open / Close Delay Audio Visual Alarm
System Protection Password Protected System
Door Type SS Sandwich Door with View Panel
View Panel Double Side 4 mm Toughened Glass
Door Handle & Hinges SS 304
Noise Level Less than 65 db on scale
Power Supply 230V ± 10V, 50 Hz, Single Phase (Also Available in 3 Phase)
Documentation DQ, IQ and OQ Documents along with all Necessary Test Certificates
Warranty 1 Year manufacturing warranty from the date of dispatch

Key Features and Specifications

  • Design according to GMP Guidelines
  • Easy to Clean and to disinfect
  • ISO 14644-3:2018  Compliance
  • Electromagnetic Door Interlocking System
  • No Sharp Edges
  • Pencil Coving for Internal Working Area
  • Sturdy Built Doubled Skin Body
  • Advanced airtightness
  • Easy Integration
  • Less than 65 dB Sound Level on scale
  • Minimum Vibration Level
  • MOC as SS 304, SS 316 or SS 316L
  • Feather Touch Display Each Side
  • Fluorescent Illumination LED Light
  • UV Light for Disinfection
  • Process Lock Timer (Inbuilt)
  • Door Open/Close Delay Alarm (Inbuilt)
  • UV Hour Meter (Inbuilt)
  • SS 304 Door Hinges and Door Handles
  • 30 MM Double Skin Doors with View Panel
  • 5 MM Toughened Glass as View Panel
  • Power Supply 220-240V, 50 Hz, Single Phase

Areas of Application

  • Pharmaceutical Industries
  • Hospitals and Medial
  • Microbiology Laboratories
  • Chemical Research Laboratories
  • Food Processing Industries
